K5
The Wavin K5 system is equipped with a flexible tube and hermetic insertion accessories for the conduction of hot and cold water.
The pipe is manufactured from high temperature resistant polyethylene, comes in diameters of 16, 20, 25 and 32mm, sold in red and blue. The PRESS type connections (Radial pressure connection) K5, which avoid depending on sources of heat or electrical energy for the union.
K5 fittings are designed for long life, ensuring a leak-free system and innovative verification for your installation. This is achieved through O-rings manufactured to the highest quality.
By using these files, or the designs made by the files, Wavin shall not be liable for any direct or indirect losses, expenses, costs, or damages of whatsoever nature, arising out of or resulting from the use of the files.
Download version: 2019
Tee
Union

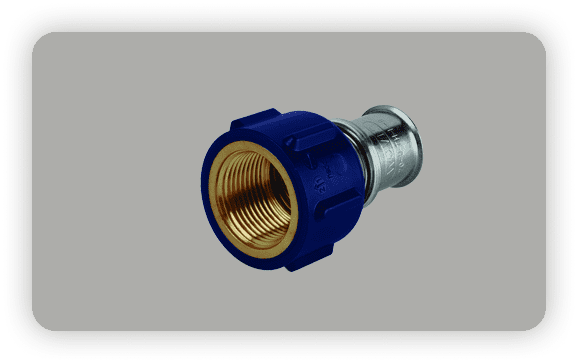

Adaptor Threaded Female
Adaptor Threaded Male
Elbow 90°

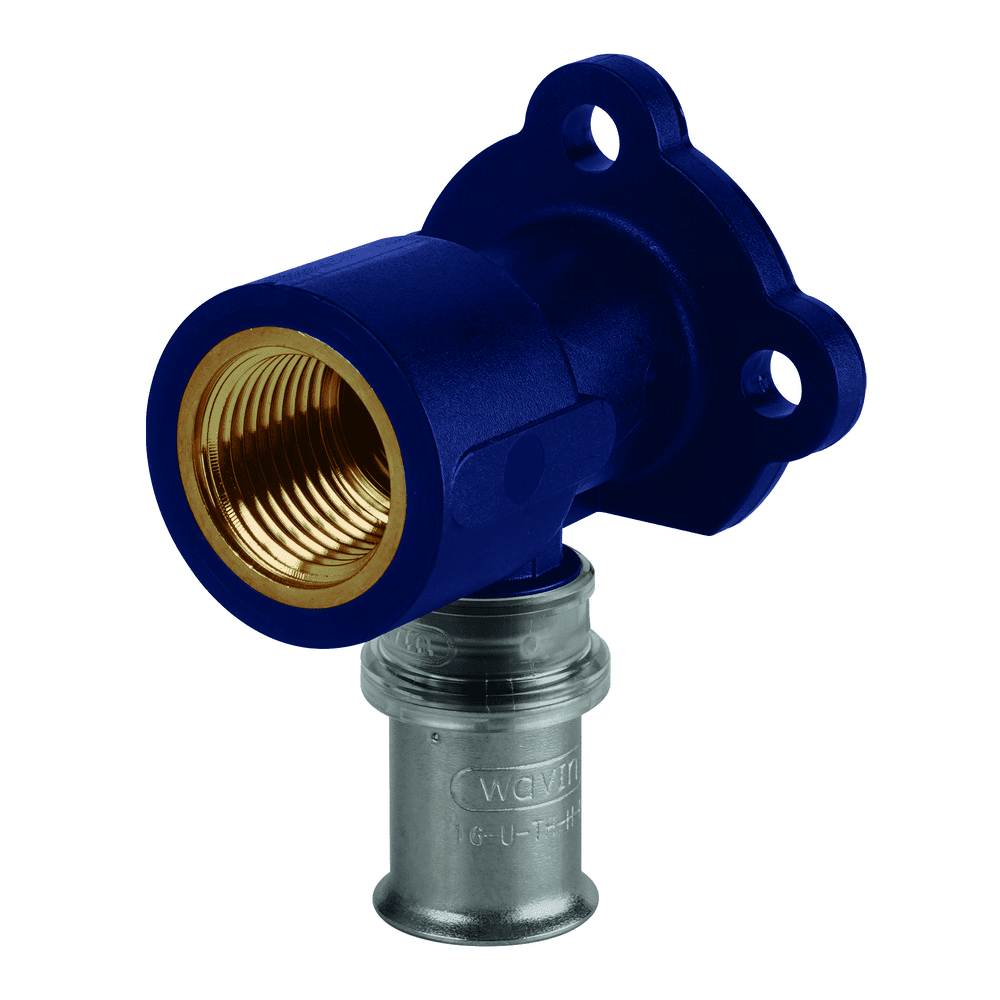

Elbow Base
Elbow Threaded Female
Elbow Threaded Male
End cap Manifold

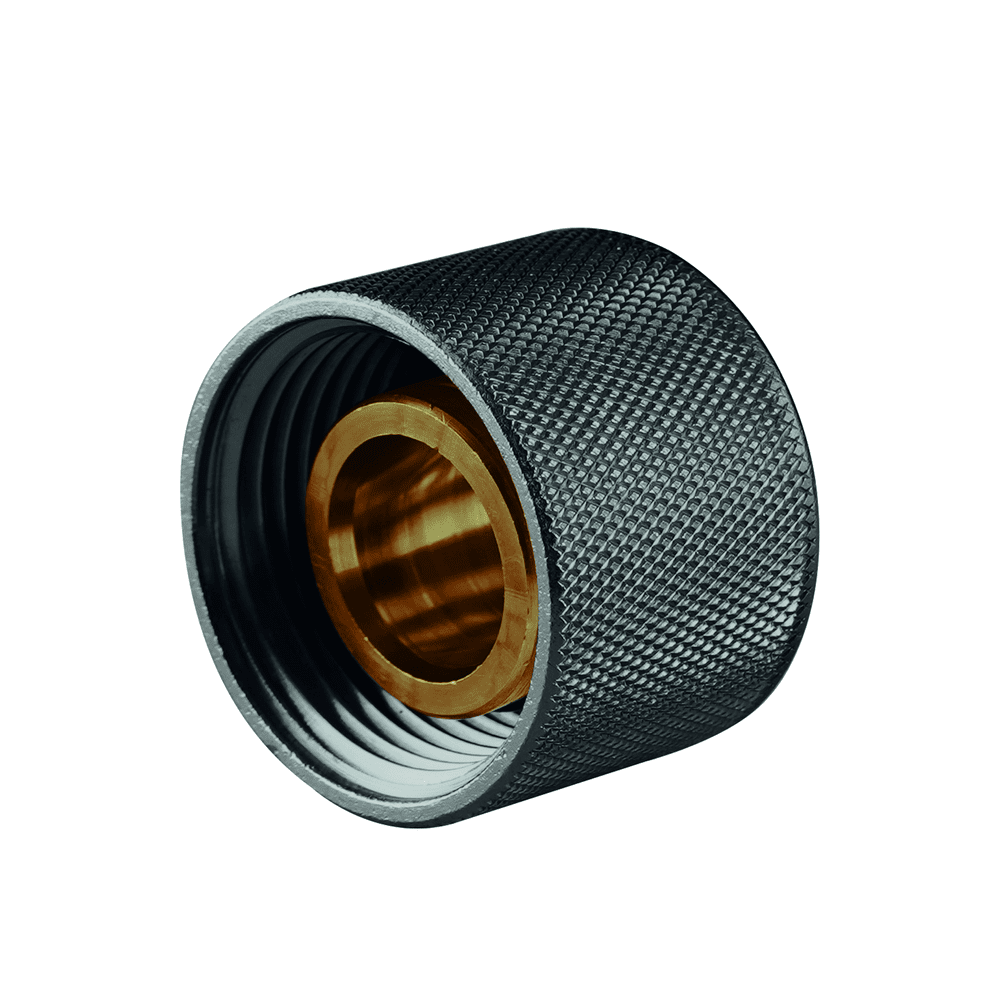

End Cap
Male Adapter Distribution Module
Manifold
Pipe Blue
Pipe Red
